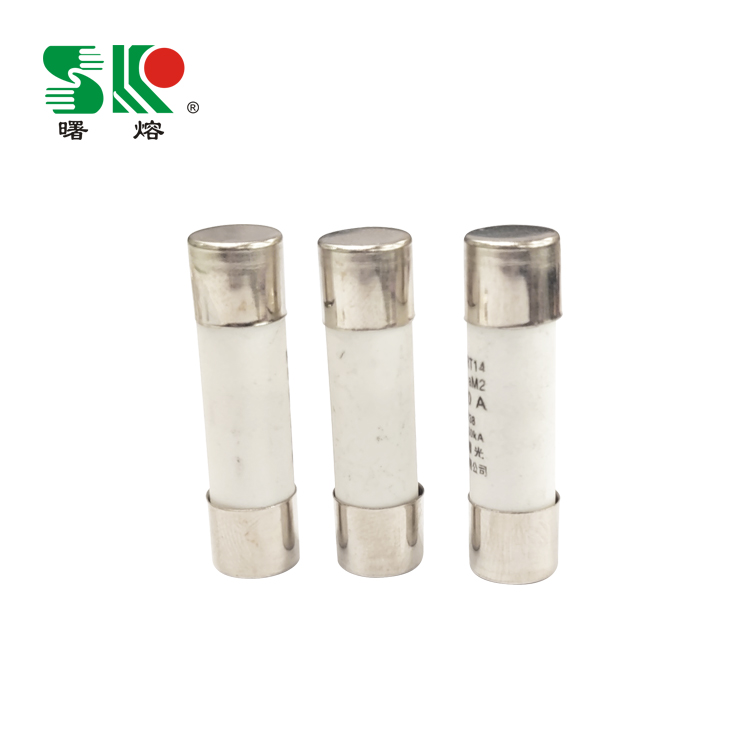

RT18-32 Fuse holder and pipe

RT18 series cylindrical cap fuse is suitable for overload and short circuit protection in power distribution devices with rated voltage of AC 220V/380V and rated current of 63A. The neon lamp and resistor form the fuse fusing signal device of the isolator (code "X"). Meet the GB13539 standard.

model： RT18
material： Copper
Type： Fuse
Origin： China
Custom processing： Accept customized
Contact Email： wzshurong@163.com

Model and its meaning

Some common RT18 series fuse models are RT18A-32, RT18-32, RT18-63, etc.

Main technical parameters and dimensions

model	Rated voltage	Rated current (A)		Rated breaking capacity(kA)		Rated power dissipation of fuse-link(W)	Support weight(g)	Fuse link weight(g)
		Support	Fuse	l1 kA	COSφ
RT18-32	500V	32	2,4,6,8,10,12,16,20,25,32	63 100	0.1~0.2	≤3	82	8
RT18-63		63	2,4,6,8,10,12,16, 20,25,32,40,50,63			≤5	206	20
RT18A-32		32	2,4,6,8,10,12,16,20,25,32			≤3	82	8

label: RT18 fuse low voltage fuse RT18 cylindrical fuse fuse base
